GSR2

Real telemetry made easy

The GSR2 device is an IoT gateway conceived for its use within the elevator environment. It features 4G connectivity. Installed inside the lift control cabinet, it interfaces with the lift controller, enabling telemetry of the elevator.

By default, the GSR2 incorporates a global internal SIM, which facilitates immediate deployment in different regions without the need for an external SIM.

The device has two RJ45 communication ports for connecting up to two complementary units, allowing interaction with the lift controller, and a USB communication port. Additionally, it includes a pluggable terminal block for a proprietary communication bus. While the device typically operates using an external power supply (not included), it can also function independently thanks to an internal battery.

Furthermore, it includes a built-in SIP client that enables VoIP calls, both emergency and test, directly to a digital call center. This feature ensures efficient and modern communication without the need for a conventional telephone line.

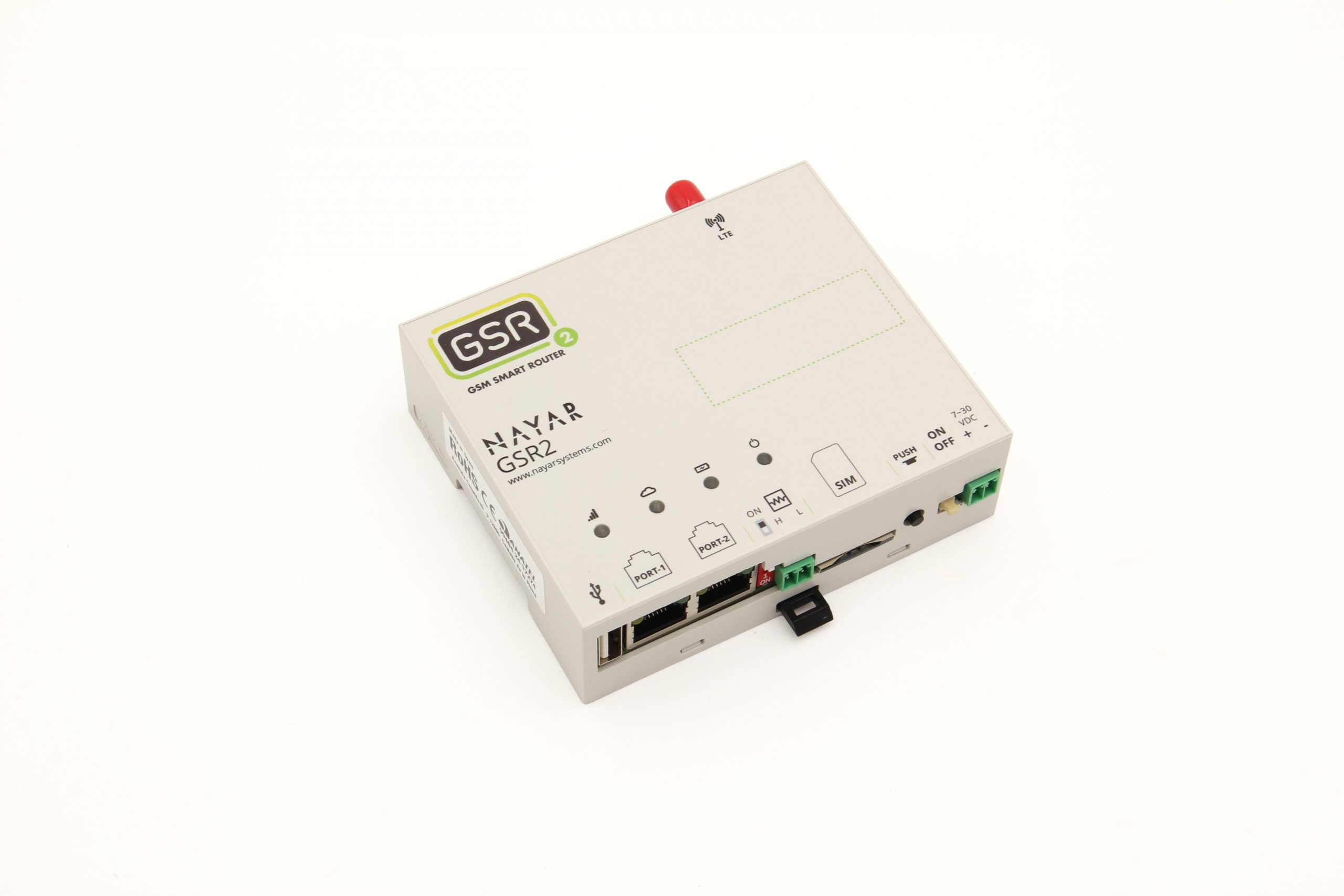

GSR2

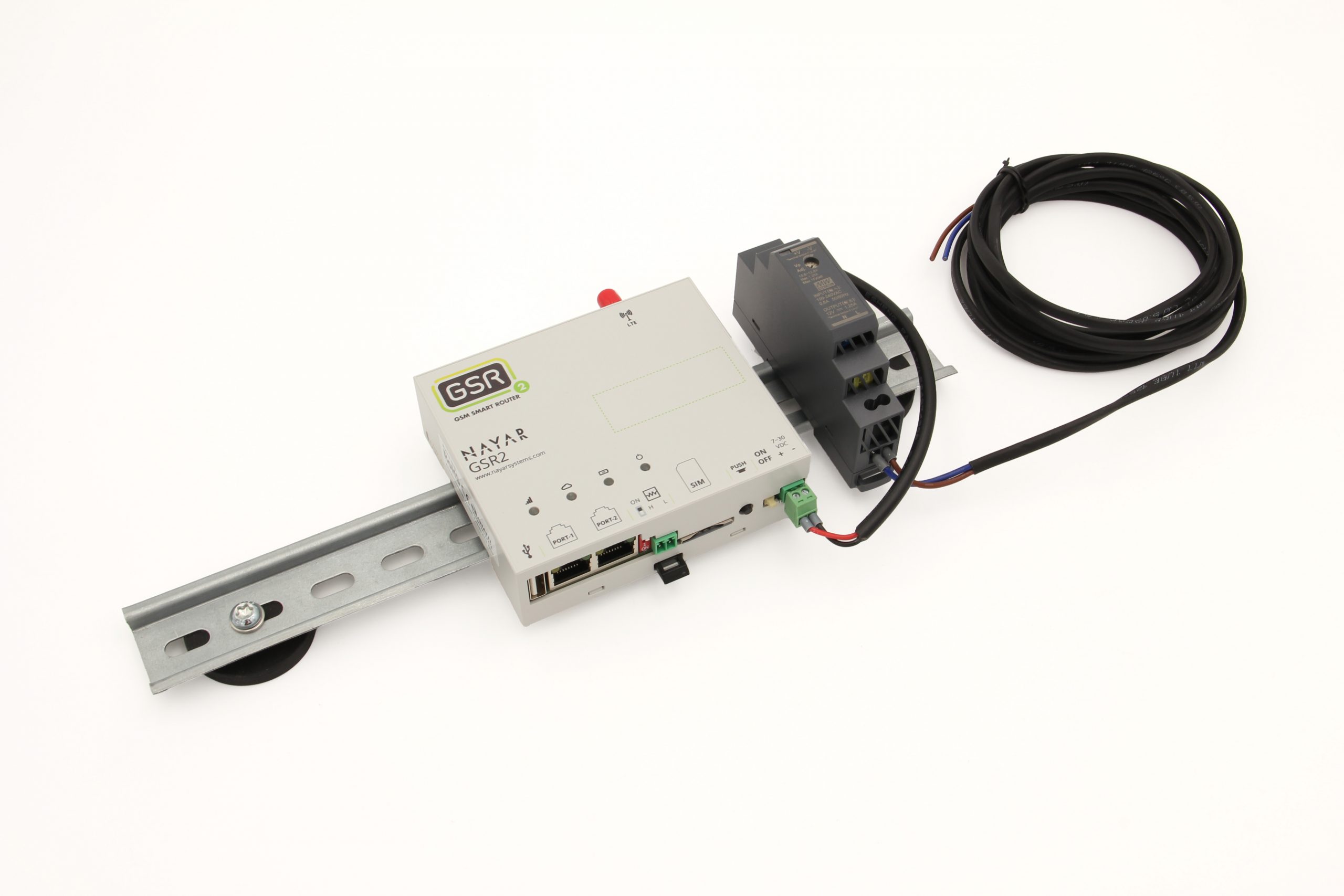

GSR2_DIN

Technical specifications, connections and electrical characteristics of the GSR2.

System
SRAM memory: 264KB
External Flash Memory: 128 Mbit
I/O
IPBUS: x1
Toolkit Port: x2
USB 2.0: x1
SIM slot: x1
Battery
Capacity: 750mAh
Power
Operative range: 7 ~ 30 VCC
Maximum consumption: 1 A (12 VCC)
Temperature
Operative range: 0ºC ~ 70ºC
Installation
DIN rail mounting (optional)
WiFi
Conectividad 4G
SLIC telefónico
Salida 12V
Ethernet

El MBB (Multivoltage Binary Board) es un módulo de interfaz diseñado para el control y gestión de señales eléctricas en un amplio rango de tensión. Su principal aplicación está enfocada en la supervisión y manipulación de señales de seguridad en sistemas de ascensores.

Este dispositivo cuenta con dos salidas de relé, permitiendo la implementación de acciones específicas según los requerimientos del sistema. El MBB no es un dispositivo autónomo, sino que requiere de un GSR2 para su funcionamiento, actuando como un módulo complementario dentro del sistema.

CAN
RS232
USB
Batería

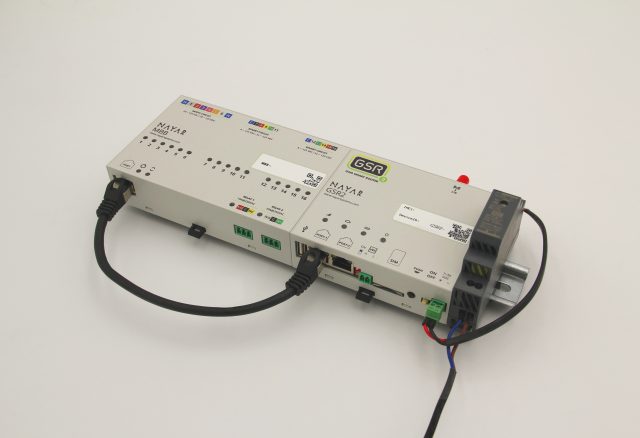

Multivoltage Binary Board Solution (MBB)

The MBB (Multivoltage Binary Board) is an interface module designed for the control and management of electrical signals over a wide voltage range. Its main application is focused on the supervision and manipulation of safety signals in lift systems.

This device has two relay outputs, allowing the implementation of specific actions according to system requirements. The MBB is not a stand-alone device, but requires a GSR2 for its operation, acting as a complementary module within the system.
